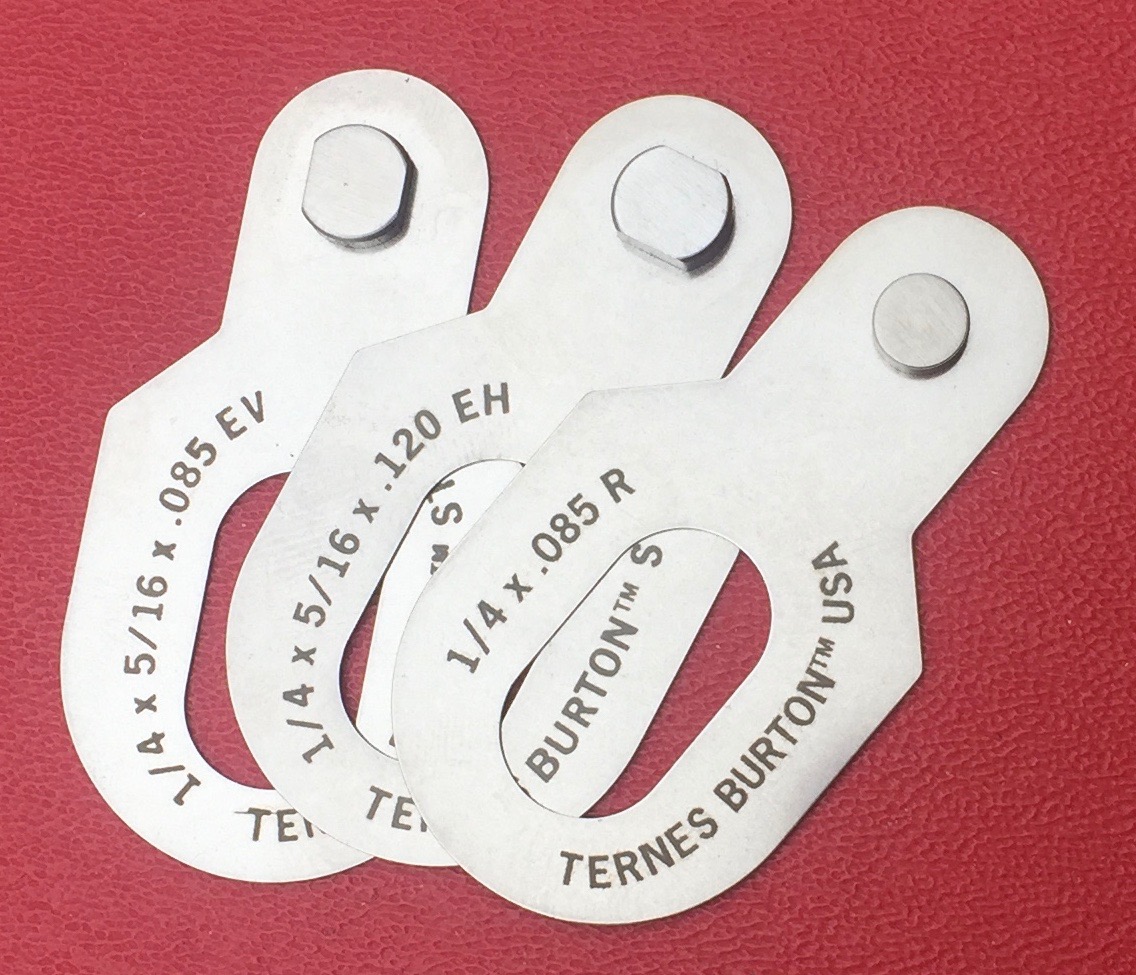

Ternes Burton register pins are made with precision machined buttons that are spot welded to a stainless steel base. The pins align layers of material or stripping tabs to accurately help you achieve the tight registration you require. One use for our registration pins is to line up layers of paper such as those used by printmakers for lino reductions or block printing. Several examples of completed projects are displayed throughout our website. Our pins enable tight registration on complicated multi color projects. The register pins work with either our stripping tabs, or can be inserted directly through the holes made by a punch. Register pin bases are. 013” thick, the sturdiest available. Each register pin is welded multiple times and is meant for long term repeated use. We hand polish both the top of the button and the bottom of the base to prevent any scratching of your work. We have over one hundred different diameters and heights to choose from. We hand stencil the diameter and height of the button on our bases for easy identification and reordering. Our base shape is unique to our company and is designed with a narrow forward area to hold the button centered to prevent tilt. The wider area of the base has a hole in it so that as you tape the pin down you have adhesion on either side as well as the center, which helps limit movement. The button height depends upon the number of layers, as well as the thickness of layers being attached to the pin. The most common register pin we sell is the 1/4" x .085". This means that the button is round, has a 1/4" diameter, and is .085" (2.16mm) high. To help you with your selections we have made packages with a combination of register pins and stripping tabs.
Our most popular pins are available below for online ordering. We have many other less common sizes or discontinued sizes that are listed on a separate pdf. Click here to view that pdf. We've made generic options available in the Misc section below where you can order these discontinued sizes. If you wish to order a size that is not available for online ordering below please remember to check the pdf list, chances are we do have it.
We look forward to providing you with the best registration pin on the market.
Dimensions on round register pins are diameter x height.
Conversions .055"=1.397mm .085"=2.159mm .120"=3.048mm 1/4"=6.35mm 9/32"=7.143mm 1/8"=3.175mm
Total minimum order is $24
The above minimum is excluding postage. We are happy to ship worldwide and this is now available at checkout.

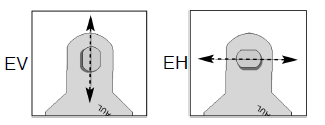

Specify Vertical or Horizontal on elongated pins.
Dimensions given on elongated pins are width x length x height.

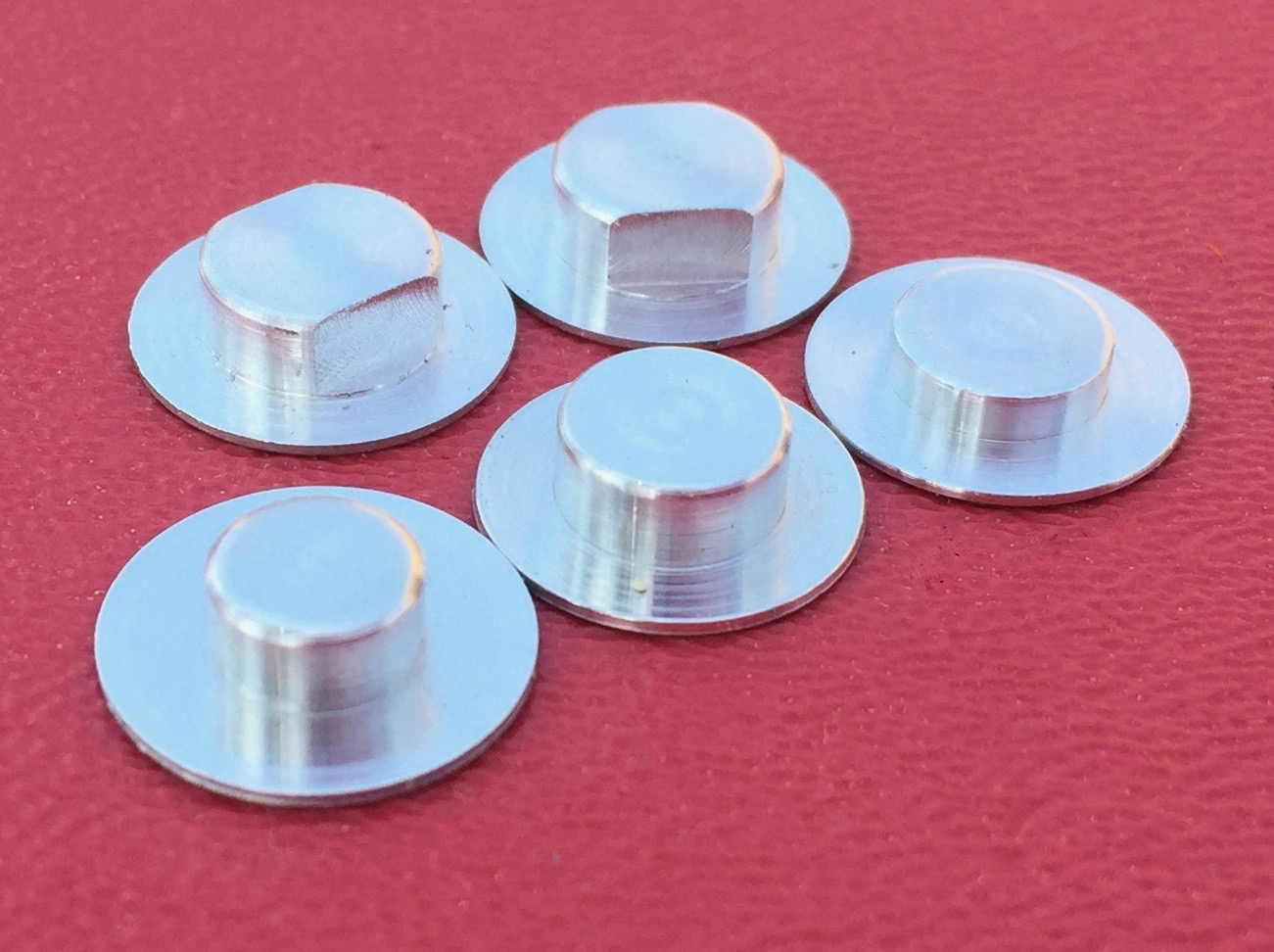

Ternes Burton Assembly pins are small based pins made from solid aluminum. We also have elongated assembly pins in several sizes, email for more information. Base size is 1/2" diameter and .020" thick.
